Topal RT Round Bar and Pipe Lifting Clamps

Price on Request
In stock
Quantity

Key Features

  • For lifting of round bars, tubes, rods, single or bundles of small beams.

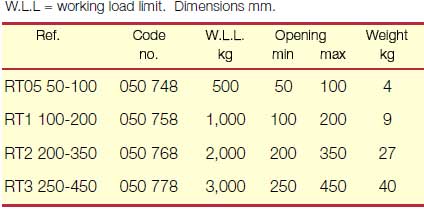

  • 4 capacities 500 kg to 3,000 kg
  • Semi-automatic clamps
  • Opening from 50 mm to 450 mm through range
  • As standard an EC declaration of conformity is supplied,
Delivery Options



Prices are each per clamp (Lifting beam and suspensions sold separately)

Applications
Lifting of round bars, tubes, rods, single or bundles of small beams.

Directions for use
Semi-automatic clamp: the clamp is locked open. To carry out the lift, the operator must activate the lever (manual unlocking) and hold it up whilst starting off the lift. When laying down the load, the clamp automatically locks itself open. The clamping is proportional to minimise any damage to the load.



Use Restrictions
Use in pairs with a lifting beam. Vertical lifting only. When lifting bundles, check that each piece is correctly secured by the clamp.Operating temperature: -20° to +100°C.
• Automatic lower lock.
• Wide range of products.
• Proportional clamping to minimise any damage to the load.
