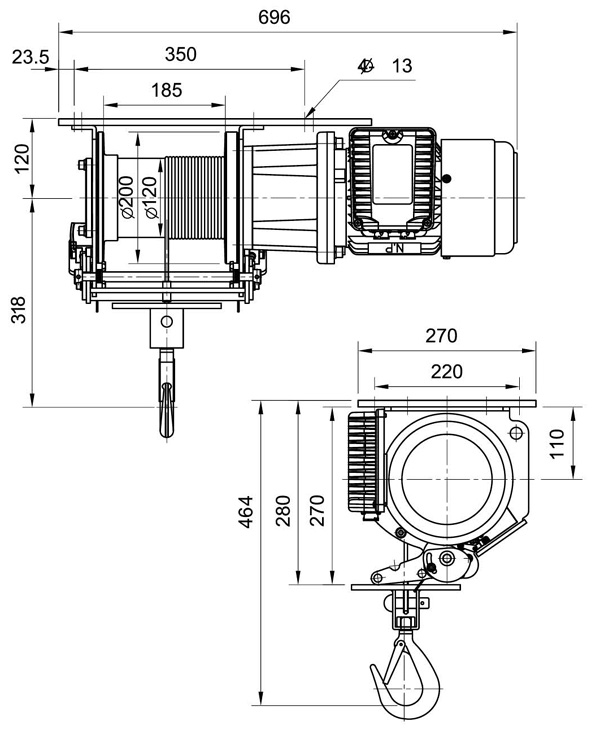

WT-180 Electric Winch for Wind Turbines
Key Features
- Lightweight and compact design
- A standard lifting height of up to 100m
- Electromagnetic spring-applied failsafe brake integrated in motor
- Emergency stop and up and down limits functions come as standard
- 24 VDC control for safety operation
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
WT-180 Windmill/Turbine Winch
- Lightweight and compact design for wind energy turbines for efficient and economical operation at great heights
- A standard lifting height of up to 100 metres and high lifting speed are perfect guarantee efficient operation.
Rated lifting capacity: 180kg at wire rope top layer
Motor: 1.0 hp x 4 P induction brake motor at IP 55 and F Class Ratings.
Gross weight of winch only: approx 9 kgs
Compliant with EN 14492-1 requirements for hoisting application:
The working coefficient for the first rope layer on the drum shall be at least 5.
The D/d ratio to the centre of the rope shall be at least 15 for the drum.
- Lifting capacity: 180 kg at wire rope top layer
- FEM classification: 2 m, 240 times starts/per hour, 40% duty cycle
- Power source: 50Hz, 3 phase, 380/400/415/440V
- Lifting speed: 17 – 23 m/min
- Motor: 0.75 kW x 4 poles induction brake motor at IP 55 and F class ratings
- Gear ratio: 2 stages planetary gear, 36:1
- Maximum lifting height: 98 m
- Brake (Integrated in motor): 230V DC electromagnetic failsafe brake
- Drum length: 185 mm
- Drum dia.: 120 mm
- Drum flange dia.: 185 mm
- Control: 24 VDC low voltage control
- Remote control: An emergency stop switch and 3-metre cord
- Limits protection: Up and Down limits protection
- Wire rope: 5 mm x 100 m untwisted w/weight hook
- Mounting bolts pattern: 350 mm x 220 mm
- Net weight, kg (standard version) : 55 kg
- Gross weight: 60 kg
- Body dimension, (L x D x H) : 696 x 463.5 x 284.5 mm
- Box dimension, (L x D x H) : 728 x 498 x 304 mm
Compliant with EN 14492-2 requirements for hoisting application:
- The working coefficient for the first rope layer on the drum shall be at least 5.
- The D/d ratio to the centre of the rope shall be at least 15 for the drum.
- A switch with an emergency stop and limits functions are requested
- Low voltage control is requested
Lifting Capacity, Lifting Speed and Rope Capacity:
|
Layer of Wire rope
|
Lifting Capacity, kg
|
Lifting Speed, m/min
|
Total Rope on the Drum, m |
|
1st
|
252
|
17
|
14.5 |
|
2nd
|
233.3
|
18.3
|
30.2 |
|
3rd
|
217.2
|
19.7
|
47.1 |
|
4th
|
203.2
|
21
|
65.1 |
|
5rd
|
190.2
|
22.4
|
84.3 |
|
6th
|
180
|
23
|
100 |
Note:
1. Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%
2. Use a snatch block for double line operation, to increase line pull by approximately 85%
Standard Accessories
- Wire rope 5 mm x 100 m untwisted
- Weight hook w/safety latch, CHW-0033
- Suspension plate
- Low voltage control ass'y LV-320
- Remote Control, PB-306
* Switch cord 1.25 mm2 x 3C x 3m
* Pendant switch PB-306 w/an emergency stop button
- Low voltage control, LV-320
Warning
The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated lifting capacity shown is based on the top rope layer on the drum
The rope winding on the drum shall remain 5 wraps from the drum
Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from the date of purchase.
WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.
| Standard Accessories |
|
