Yalelift 360 MkIII Hand Chain Hoist with Integral Trolley - Yale Hoists - Yale - By Brand

Out of stock
SKU
2104

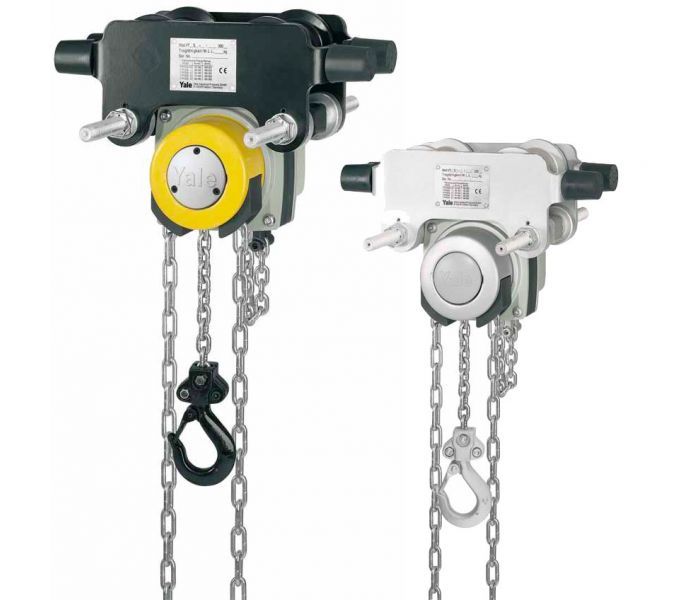

Yalelift 360 MkIII Hand Chain Hoist with Integral Trolley

Maximum 20 characters

Key Features

  • 500 - 20000 Kg Capacity
  • Epoxy powder coat finish
  • Push travel or geared travel trolleys
  • Anti-drop and anti-tilt devices as standard.
Delivery Options

YALELIFT Hand chain hoist with integrated push or geared travel trolley

Revolutionary hand chain hoist 500 kg to 20,000 kgs - Standard Epoxy powder coated^ or Standard Corrosion Resistant Finish** - From 3 metres Height of Lift Upwards

*The standard unit is supplied with zinc plated load chain and zinc plated hand chain.
**The corrosion resistant unit is supplied with stainless steel hand chain and zinc plated load chain.

Capacities: 500 - 20000kg

The combination of the Yalelift 360 with a low headroom manual trolley provides even more flexibility in the application of the Yalelift 360.

Features include:

  • All units of this series up to a capacity of 3000 kg are provided with single chain fall and the min. headroom (Dim. A) has been further reduced. Ideal for applications with low ceilings and limited headroom.
  • The proven and almost stepless adjustment system allows quick and easy assembly of the trolley.
  • Trolleys up to 5,000kg are offered for two beam ranges. Range A for a flange  width up to 180 mm is standard and covers approx. 80 % of all requirements. Conversion to range B for beam width up to 300 mm can be easily accomplished.
  • The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 - part 1), excellent rolling features are guaranteed by prelubricated, encapsulated ball bearings.
  • Anti-drop and anti-tilt devices as standard.

Options:

  • Overload prevention device.
  • Chain container.
  • Rubber buffers (shown in photograph on the right available as optional extra).
  • Explosion proof version
  • Beam locking device to secure the unloaded trolley in a fixed position on the beam  (park position e.g. on ships). Available up to a capacity of 5000 kg.

Yalelift ITP INTEGRAL PUSH TROLLEY HOISTS

Model

Capacity (WLL)

kg

Falls of
load chain

Standard
Lifting
height
mtr

Curve
radius
min. mtr

Beam
width
mm

Closed
height
mm

Weight
@ 3mtr
HOL kg

YLITPA 500

500

1

3

0.9

50 - 180

245

20

YLITP B 500

500

1

3

0.9

180 - 300

245

21

YLITP A 1000

1000

1

3

0.9

50 - 180

272

27

YLITP B 1000

1000

1

3

0.9

180 - 300

272

29

YLITP A 2000

2000

1

3

1.15

58 - 180

323

44

YLITP B 2000

2000

1

3

1.15

180 - 300

323

46

YLITP A 3000

3000

1

3

1.5

74 - 180

382

77

YLITP B 3000

3000

1

3

1.4

180 - 300

382

79

YLITP A 5000

5000

2

3

2.0

98 - 180

550

125

YLITP B 5000

5000

2

3

1.8

180 - 300

550

129



Yalelift ITG INTEGRAL GEARED TROLLEY HOISTS

Model

Capacity
(WLL)

kg

Falls of
load chain

Lifting
height
mtr

Curve
radius
min.

mtr

Beam
width

mm

Closed

height mm

Weight @

3mtr HOL kg

YLITG A 500

500

1

3

0.9

50 - 180

245

25

YLITG B 500

500

1

3

0.9

180 - 300

245

25

YLITG A 1000

1000

1

3

0.9

50 - 180

272

34

YLITG B 1000

1000

1

3

0.9

180 - 300

272

33

YLITG A 2000

2000

1

3

1.15

58 - 180

323

49

YLITG B 2000

2000

1

3

1.15

180 - 300

323

50

YLITG A 3000

3000

1

3

1.5

74 - 180

382

82

YLITG B 3000

3000

1

3

1.4

180 - 300

382

84

YLITG A 5000

5000

2

3

2.0

98 - 180

550

130

YLITG B 5000

5000

2

3

1.8

180 - 300

550

134

YLITG B 10000

10000

3

3

1.8

125 - 310

784

202

YLITG B 20000

20000

6

3

9.5

180 - 310

on request

on request

Download PDF for full dimensions
