Ratchet lever hoist model UNOplus ATEX
Capacity 750 - 6000 kg
Protection classification:
I EX M2 (Equipment group I is only valid for hoists used in the underground mining industry and their above ground facilities)
II EX 2 GD c IIB T4 T 120° C X (Equipment group II is valid for hoists used in all other areas)
Further technical development turns the new ratchet lever hoist into the successor of our proven UNO model. The versatile tool for lifting, pulling and securing of loads is characterised by its compact design, a robust stamped steel construction and a smooth free chaining device.
|
Model
|
Capacity kg |
Number of chain falls |
Chain dimensions d x p mm |
Lift with one full lever turn mm |
Handle pull at WLL daN |
|
| Weight at standard lift (1.5 m) kg |
||||||
| UNOplus ATEX 750 | 750 | 1 | 6 x 18 | 20 | 20 | 7.2 |
| UNOplus ATEX 1500 | 1500 | 1 | 8 x 24 | 22 | 35 | 12.5 |
| UNOplus ATEX 3000 | 3000 | 1 | 10 x 30 | 17 | 40 | 21.5 |
| UNOplus ATEX 6000 | 6000 | 2 | 10 x 30 | 9 | 40 | 32.0 |
Features
- Forged suspension and load hooks, manufactured from non-ageing, high alloy tempering steel, yield under overload instead of breaking.
- Alloy steel link chain with zinc-plated finish, in accordance with national and international standards and regulations.
- Robust chain guide rollers eliminate fouling and jamming of chain on the load sheave.
- Robust chain end stop
- The standard free chaining device serves to quickly attach the load.
- Hand lever with ergonomic rubber grip and opti- mized bearing seat in the housing cover.
- Due to optimized gearing a minimum effort is required to operate the short hand lever.
- Automatic screw-and-disc type load brake with corrosion protected components.
Options
- Copper plated suspension and load hooks.
- Load chain from stainless steel

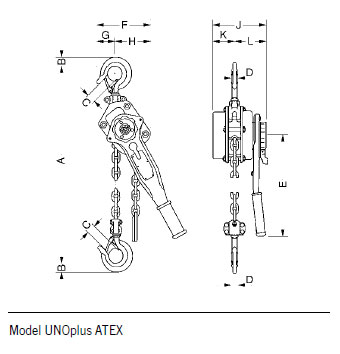

| Model |
UNOplus ATEX 750 |
UNOplus ATEX 1500 |
UNOplus ATEX 3000 |
UNOplus ATEX 6000 |
| Amin., mm | 340 | 410 | 510 | 690 |
| B, mm | 22 | 28 | 36 | 45 |
| C, mm | 26 | 32 | 40 | 44 |
| D, mm | 16 | 21 | 27 | 33 |
| E, mm | 250 | 330 | 380 | 380 |
| F, mm | 150 | 170 | 220 | 220 |
| G, mm | 70 | 80 | 100 | 100 |
| H, mm | 80 | 90 | 120 | 120 |
| J, mm | 150 | 180 | 210 | 210 |
| K, mm | 60 | 80 | 90 | 90 |
| L, mm | 90 | 100 | 120 | 120 |
