GIS GPHT 500 Handy Telescopic Chain Hoist - Electric Hoists - Hoists - Lifting, Hoisting and Winching

In stock
SKU
14838

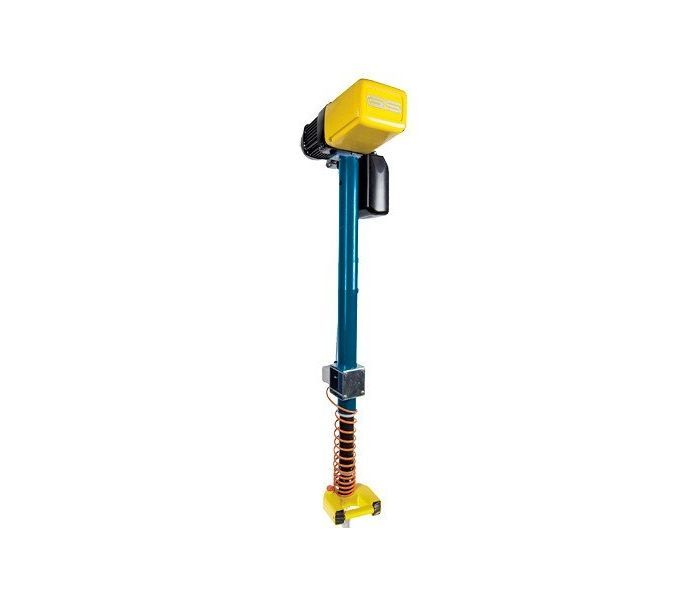

GIS GPHT 500 Handy Telescopic Chain Hoist

Maximum 500 characters

In stock
Quantity

Key Features

  • Electric operation - Ideal for repetitive handling applications
  • Rigid and Smooth - Meaning you can transport liquid
  • Limit Switch and Slipping Clutch to prevent overloading
  • Accurate product positioning through 2 speed toggle switch
  • Flexible Hand Guide Control
Delivery Options

GIS GPHT 500 Handy Telescopic Chain Hoist

These Telescopic hoists are designed to reduce repetitive manual handling, the Telescopic Handy works perfectly with articulated jibs and Crane Track Systems. The Handy Telescope model offers fast and accurate positioning of loads, operation of electric chain hoist and simultaneous precise guidance of the load with one hand. It is ideally suited for eccentric loads.

  • Control unit with rocker switch for left- and right-handed operation
  • Hook end positions adjustable by geared limit switch
  • Perfect to combine with an articulated slewing crane or suspended crane
  • All Handy hoists have fast two-speed lifting, high duty factors and are fitted with an electrical limit switch and slipping clutch to prevent overloading.
  • Option: with frequency inverter (FU)
  • Option: customised devices for load handling - Contact us
  • Option: with slack chain shutdown
  • The GIS Telescopic Handy is a versatile hoisting appliance that has been designed with a bracket for easy mounting of manipulator arms, vacuum and lifting systems or repetitive handling of many types of loads.



The GIS Telescopic Handy allows the controlled and perfected handling of goods. The Telescopic Handy is so rigid and smooth you can even transport liquids.

Three standard telescopic lifting heights are available from 1200mm, 1500 mm and 2000mm, all of which can have eccentric loads. The controls for either Handy unit are mounted adjacent to the load to provide safe handling and maximum operator control.



ISO (FEM)

classification

M7 (4m)

360 s/h

Lifting

speed

Motor type

No. of

chain

Dead weight

Mains Fuse

(400 V, delayed)

Types

 60% duty

[m/min)





[kg) 1.5 m lift

[A)

GPHT 500/NF

250

8/2

80 B 8/2

1

52

6

GPHT 500/SF

125 16/4 80 B 8/2 1 52 6

GPHT 500/NL FU

250

0.7/6.9

80 B 4

53

6

GPHT 500/N FU

 250

1.3/13.9

80 A 2

 1

53

6





The push button station will accept a load hook or a variety of other load connections (Contact us for special end effectors)
