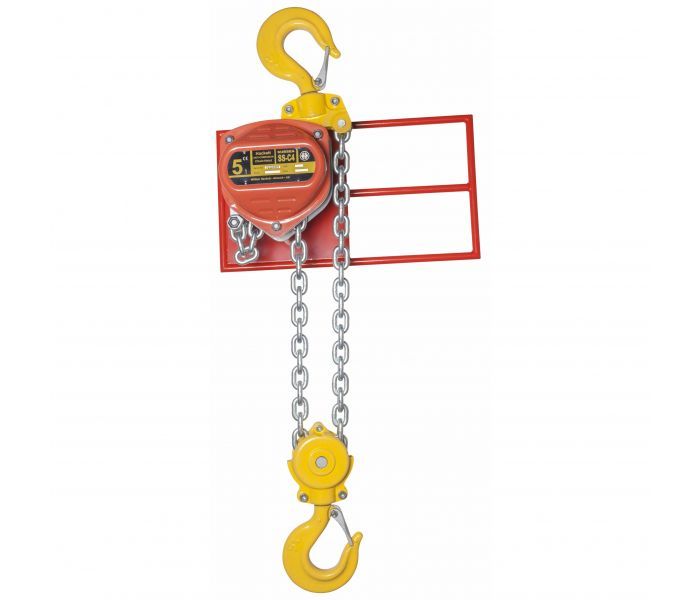

Hackett WH-ROV Subsea Chain Hoist 3,200 kg to 20 t. (Full range)
Key Features
- Chain block working load limit capacities available: 3.2t, 5t, 10t, 15t and 20t multi fall units
- Options: Hot stab interface ISO 13628-8 3/8” BSP.1 Hot stab male receptacle. - Fishtail direct drive interface - D-link drive
- High performance waterproof grease giving superior rust and corrosion protection that will not separate, cake or wash out.
- 500hrs + Protection against salt spray tests according to ASTM B117
- Specialist subsea brake material - Lightweight sturdy handles using 316L stainless steel.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
The Hackett ROV compatible SS-C4 anti-corrosion subsea chain blocks meet and exceed the requirements of international standards
British Standard BS EN13157:2004 + AI:2009
American Standard ASME B30.16-2012
Australian Standard AS1418.2-1997
South African Standard SANS 1594:2007
NORSOK R-002: 2017.
William Hackett has taken its extensive knowledge of corrosion protection acquired in the supply of its specialist subsea range to the offshore sector and translated this technology to the newly developed second-generation range of Hackett ROV SS-C4 anti-corrosion subsea chain blocks.
These hoists can be supplied in the following configurations
- Chain block working load limit capacities available: 3.2t, 5t, 10t, 15t, and 20t multi fall units
- The single hook suspension unit
- Hot stab interface ISO 13628-8 3/8” BSP.1 Hot stab female receptacle.
- Fishtail direct drive interface
- D-link drive
- High-performance waterproof grease giving superior rust and corrosion protection that will not separate, cake or wash out.
- Specialist subsea brake material
- Lightweight sturdy handles using 316L stainless steel.
- Operating temperature range -40°C to +55°C
- Stainless steel fixing and fasteners.
- 3D Models are available.
All the above hoist configurations can also be supplied with the following options
- Calibrated Grade T (8) load chain to BS EN818-7 zinc plated
- Calibrated Grade S (6) 316L stainless steel load chain
- Complies with the Lifting Equipment Engineers Association ‘Code of Practice for Selection, Management, Use, Maintenance and Examination of Hand Chain Blocks and Lever Hoists in The Offshore Environment including Subsea’. Doc. Ref. LEEA 033 dated July 2014.
Features
- 500hrs + protection against salt spray tests according to ASTM B117
- Twin pawls as standard - captivated internally to prevent damage
- Heavy-duty forged safety catches
- Stainless steel fixing used throughout the hoist
- Hook housing is bolt connected using cap head screws and nyloc nuts
- All internal hoist components fully corrosion protected
- Compact and robust design for easy handling
Performance and Testing
The Hackett ROV SS-C4 chain blocks have been fully tried and tested to include:
- Minimum Breaking Load - a minimum of 4 x the WLL
- The load chain anchor/end stop tested to at least 2.5 x the WLL with no restriction of either the brake or gears

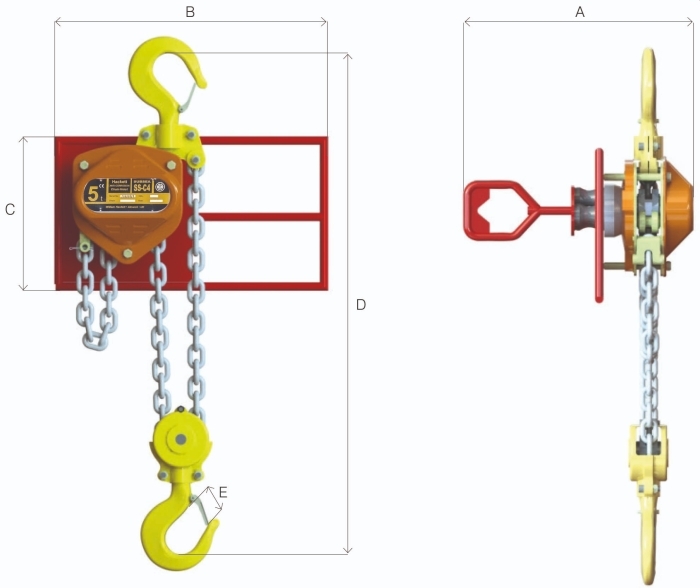

SPECIFICATIONS AND DIMENSIONS
|
Product Code |
WLL |
A |
B |
C |
D |
E |
Load |
No. |
Max |
Revs/300m |
3m weight |
Extra Weight |
| 022.R.300.H1.P | 3.2 | 384 | 516 | 292 | 520 | 43 | 10.0 | 1 | 45 | 54 | 61 | 2.2 |
| 022.R.300.F1.P | 3.2 | 507 | 516 | 292 | 520 | 43 | 10.0 | 1 | 45 | 54 | 41 | 2.2 |
| 022.R.500.H1.P | 5.0 | 384 | 516 | 292 | 600 | 51 | 10.0 | 2 | 45 | 108 | 67.5 | 4.4 |
| 022.R.500.F1.P | 5.0 | 507 | 516 | 292 | 600 | 51 | 10.0 | 2 | 45 | 108 | 47.5 | 4.4 |
| 022.R.1000.H1.P | 10.0 | 384 | 516 | 292 | 760 | 53 | 10.0 | 4 | 50 | 165 | 117 | 8.8 |
| 022.R.1000.F1.P | 10.0 | 507 | 516 | 292 | 760 | 53 | 10.0 | 4 | 50 | 165 | 97 | 8.8 |
| 022.R.1500.H1.P | 15.0 | 414 | 516 | 292 | 1000 | 80 | 10.0 | 6 | 50 | 330 | 118 | 13.2 |
| 022.R.1500.F1.P | 15.0 | 537 | 516 | 292 | 1000 | 80 | 10.0 | 6 | 50 | 330 | 99 | 13.2 |
| 022.R.2000.H1.P | 20.0 | 429 | 600 | 292 | 1150 | 80 | 10.0 | 8 | 55 | 430 | 225 | 17.6 |
| 022.R.2000.F1.P | 20.0 | 552 | 600 | 292 | 1150 | 80 | 10.0 | 8 | 55 | 430 | 205 | 17.6 |
Hydraulic hot stab male receptacle
The William Hackett hot stab hydraulic interface assemblies are manufactured to customer specifications in our UK factory. The system incorporates a dual port type A receptacle, either ISO standard, and API optional specification which is fitted with check valves to prevent the ingress of water and loss of hydraulic fluid. The hot stab assemblies, valves, and piping are manufactured from Grade 316 stainless steel. All materials certified to BS EN 10204 3.1.
• Framework handle 316 Stainless Steel
• Compliant with BS ISO 13626-8:2002 and BS ISO 13628-1:2005.
