Lifts All BASIC Ergonomic Handler with interchangeable vacuum cups
Key Features
- Powered by compressed air
- interchangeable vacuum cups for sacks, boxes etc
- Many configurations are possible to cover your working envelope
- easy to use and safe in operation - anti-drop low vacuum automatic lowering
- Request an evaluation for your project today!
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
TIP: Fill in the get a quote info and we will contact you to discuss your exact requirements.
Repetitive handling of boxes, cans, small drums and sacks made easier!
Max load: 50 kg

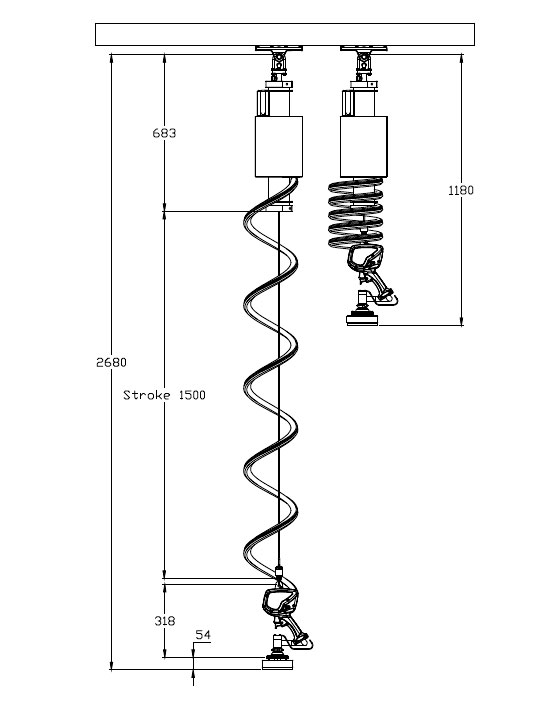

Lift height: 1,5 m
Driven by: Compressed air 6-7 bar
Rotation of the load: Endless
QUICKER LIFTING WITH BASIC!
Basic is an all-round lift, perfect for distribution centres and warehouses where lifting of boxes etc. need to be quick and smooth.
Controlling the Lifts - As soon as Basic’s vacuum head lands e.g. on the carton box, it is automatically attached and ready to lift. The user controls the speed and the height of the gripper proportionally with the two buttons for up and down. The more a button is pressed down, the faster Basic moves up or down. Thanks to the proportionality, and the endless rotation of the vacuum head, the box is easily placed in the wanted position. Careful and exact or - for maximised handling speed - the box can be released in the air by a distinct push with the thumb on the red release button.
Quick Learning - Quick Lifting
The handle is specially designed to suit both left and right-handed users, no matter the hand size. No modifications are needed to change from the right hand to the left hand. Due to the ergonomic design and the instinctive control, new users easily learn how to use Basic. The difference from lifting manually or with another lifting tool is obvious.
Safety First
Basic is a safe lifting tool. It never allows lifting if the vacuum level is below what has been preset. If the vacuum level in the suction cups drops during lifting, Basic will slowly lower. To release the load there are two options:
1. Release in the air - a distinct push on the red release button releases the load.
2. Unload first - will not release the load until it is resting safely on a surface and the user pushes the red release button.
Reliable Pneumatic Technology
Lifts All have experience of manufacturing lifting tools since 1994. Thousands of unique lift solutions have been made. With our long experience and this reliable technology, we have been able to develop Basic.
Rotation of vacuum head: Endless
Noise level - carton: 55 dB
Noise level - airtight: 0 dB
LIFTING CARTON BOXES, CANS, SMALL DRUMS AND SACKS WITH BASIC
BIG SAVINGS IN ENERGY COSTS
Basic is pneumatically driven and only requires a few per cent of the energy needed by traditional vacuum lifters. This leads to beneficial effects on both economy and environment, as well as making the lifter silent.
Smarter Air Consumption - Unlike traditional vacuum lifters Basic knows when to switch on and off. The clever auto start turns on as soon as the vacuum cup lands on a surface. If the surface is airtight Basic immediately stops consuming air, even during the lift. When lifting a rugged carton box, for example, Basic will only consume precisely as much air as it needs to keep a decent vacuum level.
And the biggest difference
No waste of energy when the gripper is not carrying any load or when it is not in use. Did we mention that Basic knows when to switch on and off?
Energy Saving is Standard
The energy saving system is standard and always included in the Basic package. Ask us for an energy savings calculation for your company!
LIFTING TOOLS

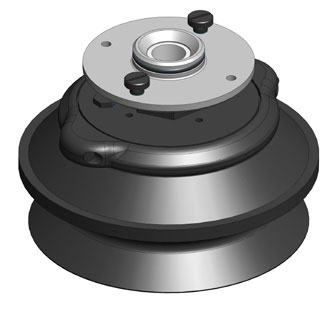

Single Small Cup diameter: 110 mm Max load - carton: 12 kg Max load - flat air tight: 22 kg |
Single Medium Cup diameter: 150 mm Max load - carton: 25 kg Max load - flat air tight: 43 kg |
Single Large Cup diameter: 200 mm Max load - carton: Not applicable Max load - flat air tight: 50 kg |
|

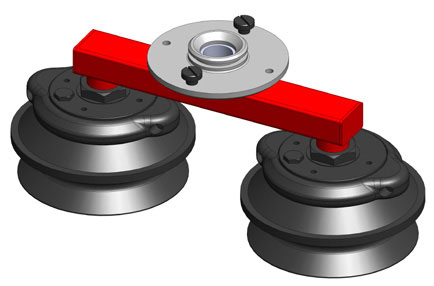

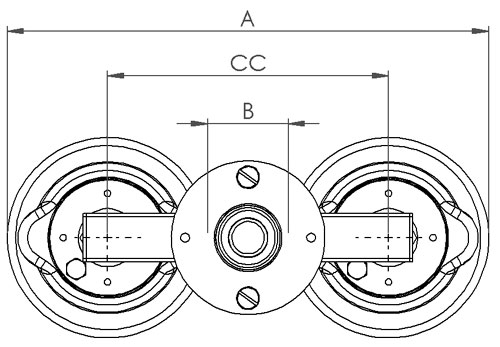

I-frame Small Cup diameter: 75 mm Outer distance (A): 277 mm Cups distance (B): 111 mm Center distance (CC): 194 mm Max load - carton: 12 kg Max load - flat air tight: 20 kg |
I-frame Medium Cup diameter: 110 mm Outer distance (A): 318 mm Cups distance (B): 70 mm Center distance (CC): 194 mm Max load - carton: 24 kg Max load - flat air tight: 44 kg |
I-frame Large Cup diameter: 150 mm Outer distance (A): 360 mm Cups distance (B): 28 mm Center distance (CC): 194 mm Max load - carton: 50 kg Max load - flat air tight: 50 kg |
|

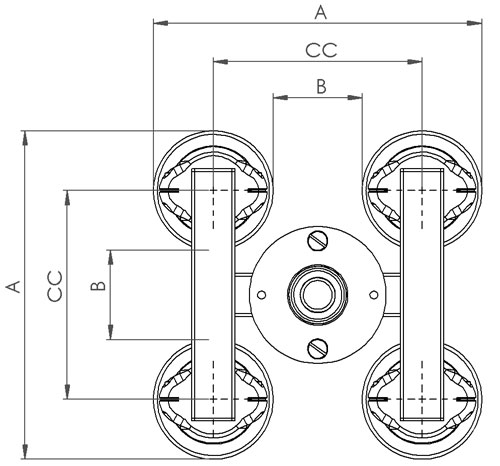

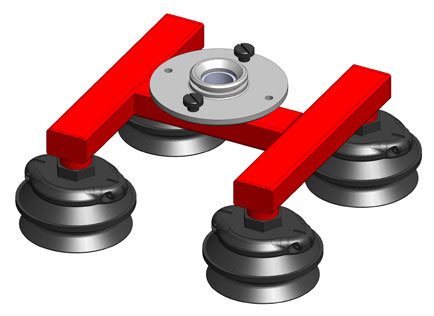

H-frame Small Cup diameter: 75 mm Outer distance (A): 228 mm Cups distance (B): 62 mm Center distance (CC): 145 mm Max load - carton: 24 kg Max load - flat air tight: 40 kg |
H-frame Medium Cup diameter: 110 mm Outer distance (A): 269 Cups distance (B): 21 mm Center distance (CC): 145 mm Max load - carton: 50 kg Max load - flat air tight: 50 kg |
||

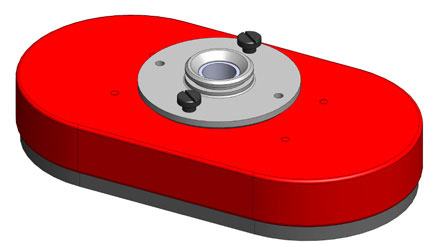

Sack Frame Medium Length: 425 mm Width: 275 mm Max load: 50 kg |
|||
Please note: - Safety factor 2 is included in all max loads. - Cup diameters are approximate. - Contact us for tailor-made |

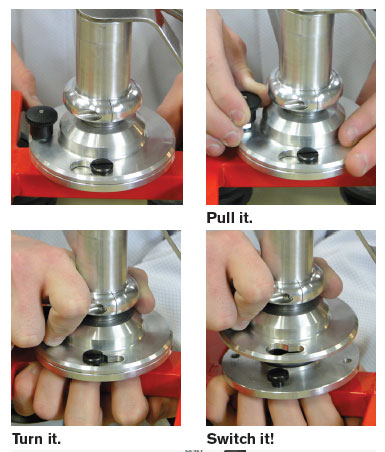

The quick connection makes Basic multi-facetted. The user switches applications in an instant for the different loads, materials, weights and sizes. The integral lifting hook is always there, easily flipped down, when a vacuum cup can’t get a grip.
OPTIONAL
Swiveling Ball Joint for heavy loads where the weight is divided unevenly or if the grip surface is uneven. Lets the vacuum head and load pivot 15 degrees. Easy to change.
Loads of other attachments and crane systems available from the Liftsall range - New mobile jib crane now available.
