Wireless Loadcell Software - View full details in the Straightpoint brochure available here

Software for the Straightpoint range of wireless loadcells

Centre of Gravity (CofG) software with extended range USB base station

Wireless Centre of gravity system designed specifically for use when large industrial items such as absorbers, generators, turbines, reactors,boilers, towers, locomotives, boats, military
equipment or offshore industry parts such as oil rigs and production platforms have to be moved. Heavy lift companies need large capacity load cells and easy to use software to quickly report weight and centre of gravity.

Multiple wireless loadcell controller software with extended range USB base station

Straightpoint’s Multiple Wireless Load Cell Controller (SW-MWLC) software package is a versatile, user-friendly, wireless load cell control, display and data logging tool designed for use on
the Windows PC platforms, Vista, Win 7, 8 & 10.

Proof test plus software with extended range USB base station

Numerous load testing applications worldwide require a load cell to verify the load applied. From crane testing using water bags to pad eye testing using hydraulic tools, the need to document test
procedure and results have never been greater as users of lifting equipment call for more traceability and audit trails.

Android & iOS app to connect to any SP Bluetooth loadcell - FREE

The HHP app allows you to stand back and remotely monitor the level of force being measured by your SP product in real-time, without the need for troublesome cabling. Once you have downloaded and installed the app on to your smartphone or tablet you will be able to use the Bluetooth feature to connect wirelessly to any Bluetooth enabled wireless SP device

Wireless Loadcell Accessories

Accessories for the Straightpoint range of wireless loadcells

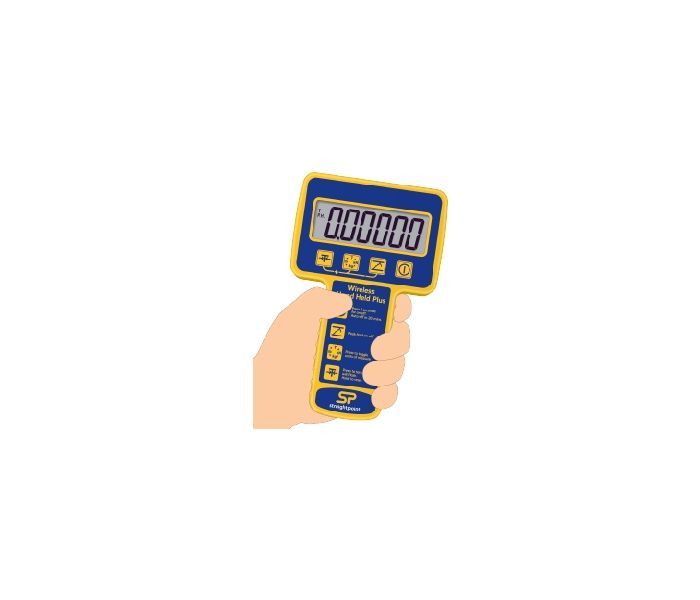

The Handheld plus is a rugged and versatile digital handheld display with a broad range of features and suitable for all Straightpoint load cell products.

At the heart of the ergonomically designed Handheld plus is a powerful PCB providing industry-leading features such as user-selectable units of measure (tonnes, lbs, kg, and kN), programmable audible overload alarm, peak hold, pre-set tare and a user resettable overload counter.

This crucial overload alarm counter is a requirement for many safety and quality control departments, as it keeps track of overload events, allowing the load cell in question to be removed from service immediately, following the calibration voiding overload event. The load cell in question can then be sent out for proper testing and, if necessary, recalibration before re-entering service.

SW-HHP is suitable for connection to any Straightpoint wireless load cell, has a range of up to 700m/2300ft and is supplied as standard with the Radiolink plus load cell.

ATEX/IECEx  Ex ia IIC T4 Ga Zone 0 Handheld plus

Intrinsically safe Handheld display unit for reading measurements in hazardous environments; such as on and offshore oil, gas and chemical industries in zones classified 2,1 and 0.

Marking: II 1 G & Ex ia IIC T4 Ga

Certificate Number: SIRA 15ATEX2196X & IECEx SIR15.0072X

Wireless overload alarm system

The SW-OAM is a wireless relay module featuring audio and visual warning indicators. The unit’s two set point alarms can be triggered by a single or summed group of up to eight Straightpoint wireless load cells. The SW-OAM is ideal as a Wireless Overload Detection System.

Wireless base station with analogue output

SW-A01i


The SW-AO1i provides a configurable analog output for any single Straightpoint Wireless Load Cell and is ideal for integration to a PC, PLC or other Data Acquisition Systems. Housed in a NEMA 4 enclosure the output can be selected from pre-calibrated voltage and current ranges of 0-5vdc, +-5vdc, 0-10vdc, +-10vdc, 0-20mA, 4-20mA.

Wireless base station with RS232 op

SW-SO
Serial output ASCII string module

Ideal for integration to a PC, PLC or other device requiring a simple RS232 serial input, this module allows for a user defined ACII string which can include individual or summed data from up to eight Straightpoint Wireless Load Cells.

Wireless 100mm LED remote scoreboard display

SW-SD
Wireless slave display

This 100mm (4”) scoreboard LED display is wireless and viewable for up to 150 ft. Perfect for installation on a crane gantry the unit operates on 110-240 VAC and display’s an individual load or summed load for up to eight Straightpoint Wireless devices.

Advanced handheld for wireless loadcells

By default, the SW-AC handheld will display the total load on the loadcells. To obtain a total load: Switch on by pressing 1 The display will now show the gross load on all loadcells programmed into the system. To tare the display to zero press 3. If a wireless printer is supplied pressing 3 will print the total and individual loads.

Wireless signal booster

The SW-SB signal booster/repeater module is battery operated and easily pairs to any Straightpoint Wireless device e.g. load cell, accessories, and software solutions within range, quickly increasing coverage and extending range.

Wall or cab mount bracket for SW-HHP, SW-AC or HHP

Constructed from stainless steel and fitted with a viewing angle adjusting mechanism
the SU3282 bracket fits either the HHP or SW-HHP handheld displays.
Ideal for wall or cab mounting leaving the operators hands free to work saf

Protective boot for SW-HHP and HHP

Drop tested to one metre at –30°C this 70SHA rubber boot is purpose moulded to fit and protect the HHP and SW-HHP handheld display against impact when being used in the harshest industrial environments

Wireless loadcell transmitter

The SA700C transmitter connects to strain gauge transducers such as load cells, torque sensors and pressure transducers allowing them to form part of a Straightpoint wireless system.

Load data from the SA700C can be received by multiple receivers that include SW-HHP handheld, SW-MWLC software or our range of wireless accessories.
The load data transmitted by the SA700C has been designed for battery operation and supports an ultra-low-power sleep mode whilst offering class-leading wireless coverage and range.
Configurable transmission rates from once per day to 200 per second cope with a wide range of measurement and monitoring applications.

Housed in an aerospace grade aluminium enclosure and sealed to IP67 / NEMA6 with no external antennae the SA700C provide a flexible solution to your wireless load cell requirements.
