YALE push and geared type model HTP/G ATEX - Capacity 500 - 20000 kg

Delivery Options

YALE push and geared type model HTP/G ATEX Capacity 500 - 20000 kg

No protection classification as no ignition source when utilized according to intended use.
Applicable in zone 1, although the protection classi- fication of the utilized hoist has to be considered

The trolley enables the exact positioning or easy tra versing of large loads with either manual or powered hoisting equipment.

Features

  • Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
  • The solid bronze trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 -part 1), excellent rolling features are guaranteed by prelubricated, encapsulated ball bearings.
  • Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis - no creeping to the left or the right.
  • Explosion protected version with spark resistant coating.
  • Trolleys equipped with rubber buffers.
 Options
  • Locking device to secure the trolley in position on the beam (park position e.g. on ships).
  • Hand chain from stainless steel
Technical data model HTP ATEX and model HTG ATEX
ModelCapacitySizeBeam flange width bMaximum flange thickness tMin. curve radiusEffort at WLLWeight*Weight**
Hand Push kgmmmmmdaNkgkg
HTP ATEX 500500A50 - 220250.98.014.5
HTP ATEX 10001000A50 - 220250.99.017.0
HTP ATEX 20002000A66 - 220251.1516.024.0
HTP ATEX 30003000A74 - 220251.432.041.2
HTP ATEX 50005000A90 - 220251.848.058.5
HTP ATEX 500500B160 - 300400.910.617.1
HTP ATEX 10001000B160 - 300400.912.020.0
HTP ATEX 20002000B160 - 300401.1519.327.3
HTP ATEX 30003000B160 - 300401.435.845.0
HTP ATEX 50005000B180 - 300401.852.262.7
Geared
HTG ATEX 500500A50 - 220250.939.716.2
HTG ATEX 10001000A50 - 220250.9611.219.2
HTG ATEX 20002000A66 - 220251.15718.026.0
HTG ATEX 30003000A74 - 220251.4735.444.6
HTG ATEX 50005000A90 - 220251.8951.862.3
HTG ATEX 500500B160 - 300400.9312.619.1
HTG ATEX 10001000B160 - 300400.9614.122.1
HTG ATEX 20002000B160 - 300401.15721.329.3
HTG ATEX 30003000B160 - 300401.4739.248.4
HTG ATEX 50005000B180 - 300401.8956.066.5
HTG ATEX 80008000B125 - 310401.814104.0
HTG ATEX 1000010000B125 - 310401.814104.0
HTG ATEX 1500015000B125 - 310405.029230.0
HTG ATEX 2000020000B125 - 310405.029230.0
*Weight for HTG ATEX without hand chain           **Weight HTG ATEX with locking device without hand chain

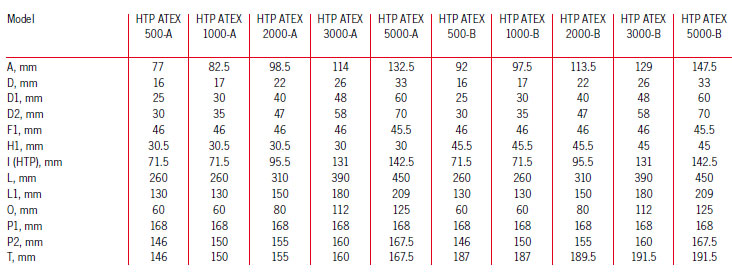

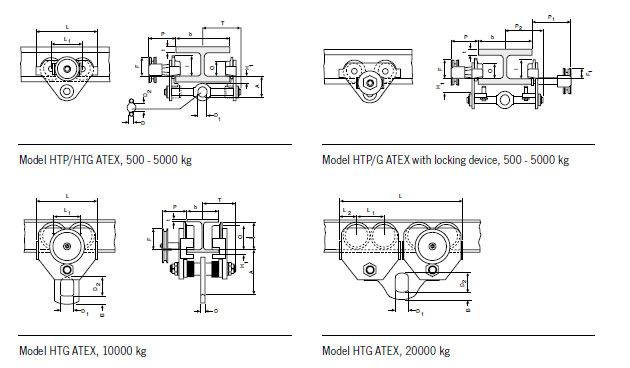

Dimensions model HTP ATEX

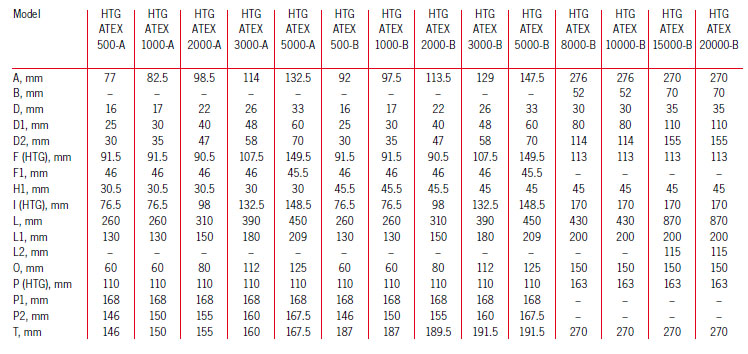

 Dimensions model HTG ATEX


Fill in our online enquiry form above and request your quote today!
Specification available to download in CMCO Atex brochure online Click Here  or contact our sales team
