Crosby Utility Wedge Socket S-422T - Crosby - By Brand

In stock
Only %1 left
SKU
S-422T

Crosby Utility Wedge Socket S-422T

From £116.28 £96.90
In stock

Key Features

  • To suit wire ropes 10 to 32 mm dia
  • Basket is cast steel and individually magnetic particle inspected.
  • Wedge socket terminations have an efficiency rating of 80% based on the catalog strength of XXIP wire rope.
  • Wedges are color coded for easy identification.
  • Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these sockets meet other critical performance requirements including fatigue life, impact properties
Delivery Options

Crosby

Utility Wedge Socket S422T

  • basket is cast steel and individually magnetic particle inspected.
  • Wedge socket terminations have an efficiency rating of 80% based on the catalog strength of XXIP wire rope.
  • Wedges are colour-coded for easy identification.
  • Blue - largest wire line size for socket.
  • Black - mid size wire line for the socket.
  • 11mm on US4
  • 14mm on US5
  • Orange - smallest wire line size for socket.
  • Cast into each socket is the name “McKissick”, “Crosby” or “CG”, its model number, and its wireline range.
  • By simply changing out the wedge, each socket can be utilized for various wire line sizes (Ensure correct wedge is used for wire rope size).
  • Cast into each wedge is the model number of the socket and the wireline size for which the wedge is to be used.
  • The load pin is forged and headed on one end.
  • Incorporates Crosby’s patented QUIC-CHECK® “Go” and “No-Go” feature cast into the wedge. The proper size rope is determined when the following criteria are met:
  • 1) The wire rope should pass through the “Go” hole in the wedge.
  • 2) The wire rope should NOT pass through the “No-Go” hole in the wedge.
  • US-422T wedge sockets contain a hammer pad (lip) to assist in proper securing of the termination.
  • Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load, and temperature requirements. Importantly, these sockets meet other critical performance requirements including fatigue life, impact properties, and material traceability, not addressed by ASME B30.26.
  • UWO-422T Wedges are to be used only with the US-422T Wedge Socket Assemblies.

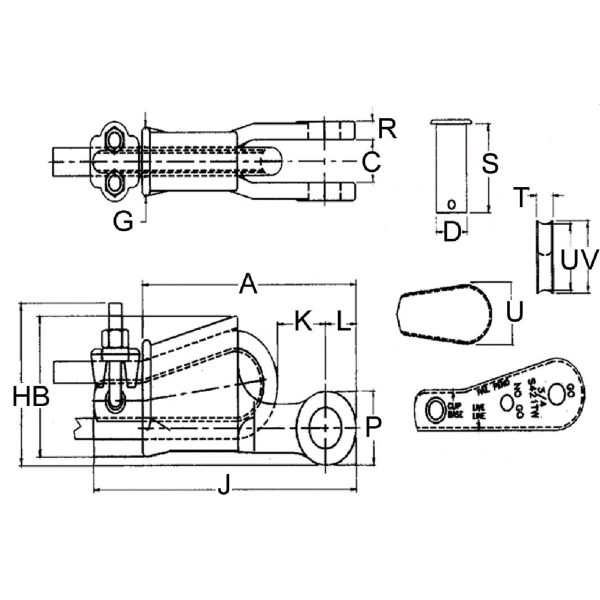

Wedge socket
 Metric Dimensions
Model No.  Wire Rope Size

US-422T
Stock No.

Weight (kg)  Weight (kg)

Dimensions (mm)
(mm) A B C
+/- 2.29
D G H J K L P R S T U V
US4T 10 1044300 2.09 0.27 173 90.2 25.4 25.4 41.4 71.4 214 35.1 26.9 49.3 12.7 64.3 11.2 48.5 54.4
US4T 11 1044309 2.09 0.27 173 90.2 25.4 25.4 41.4 71.4 222 27.4 26.9 49.3 12.7 64.3 13.5 44.7 47.8
US4T 13 1044318 2.09 0.27 173 90.2 25.4 25.4 41.4 71.4 222 25.9 26.9 49.3 12.7 64.3 13.5 44.7 47.8
US5T 13 1044327 3.86 0.45 233 107 35.8 31.8 54.1 84.1 284 46.7 38.1 76.2 16.0 82.6 19.1 48.8 54.9
US5T 14 1044336 3.86 0.45 233 107 35.8 31.8 54.1 84.1 291 61.0 38.1 76.2 16.0 82.6 17.5 50.8 55.4
US5T 16 1044345 3.86 0.45 233 107 35.8 31.8 54.1 84.1 291 59.4 38.1 76.2 16.0 82.6 17.5 50.8 55.4
US6T 16 1044354 4.26 0.64 240 119 38.1 31.8 56.9 92.2 303 63 38.1 76.2 14.2 82.6 22.4 60.5 69.9
US6T 19 1044363 4.26 0.64 240 119 38.1 31.8 56.9 92.2 300 51.6 38.1 76.2 14.2 82.6 22.4 54.1 66.8
US8AT 16 1044372 9 1.9 269 144 46 41.4 60.5 140 335 48.5 38.9 73.2 19.1 105 17.5 82.8 88.9
US8AT 19 1044381 9.3 2.2 269 144 46 41.4 60.5 148 344 60.5 38.9 73.2 19.1 105 19.8 79.2 85.9
US8T 22 1044404 14.3 3.4 324 177 46 41.4 77.7 183 407 72.9 41.9 79.2 19.1 105 22.4 98.6 106
US8T 25 1044417 14.7 3.9 324 177 46 41.4 77.7 186 417 58.9 41.9 79.2 19.1 105 26.2 95.5 103
US10T 28 1044426 25.1 5.7 405 219 46 41.4 90.7 232 501 82.8 55.6 111 19.1 105 27.7 121 129
US10T 32 1044435 26.3 6.8 405 219 46 41.4 90.7 239 514 71.9 55.6 111 19.1 105 30.2 117 125
US11T 28 1044444 27.5 5.7 415 222 66.5 63.5 90.4 232 507 85.6 59.4 114 26.9 156 27.7 121 129
US11T 32 1044453 29.4 6.8 415 222 66.5 63.5 90.4 239 520 74.7 59.4 114 26.9 156 30.2 117 125
