GIS - LP - LG Entertainment Chain Hoists for General Rigging Purposes to D8 PLUS guidelines
Key Features
- Lifting capacity up to 2000 kg
- Suitable for frequency inverted operation
- Housing, chain and equipping parts black
- Usable as stationary or climbing hoist
- 440V 3 phase 115V and 240V 1 phase models
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Entertainment Chain Hoists for General Rigging Purposes to D8 PLUS guidelines
LP LIFTING CAPACITY 125 KG – 1000 KG
LG LIFTING CAPACITY 630 KG – 2000 KG
THE REGULATIONS High integrity hoists prepared for incorporation into D8+ hoisting systems to enable hoists to be used with the capability of holding loads at rest above people without using a secondary safety component, to accepted standards and codes of practice. These hoists allow the following (when people are below the load): Load holding when loads are static The hoists do not allow (when people are below the load): Assembly/disassembly during set up Staging processes involving movement D8+
REQUIREMENTS INCLUDE:
- Second brake
- De-rating of the lifting capacity to give an increased safety factor of at least 8:1 safety coefficient of the load-bearing material, according to DIN56950-1, 2012
- Clutch overload device is mounted outside the drive train; In the event of clutch problems, the load is not compromised
FEATURES - GENERAL
- Modern, quiet, reliable and proven design, manufacture and assembly mean long life and competitive pricing
- Lightweight hoists, with the smallest model weighing only 13kg
- Lifting capacities from 125 to 1000kg on 1 chain fall
- 2 independent spring loaded brakes
- Direct control or low voltage control – With upper/lower geared electrical limit switches » Contactor control - no electronics
- Clutch overload device mounted outside the drive train; in the event of clutch problems, the load is not compromised
- Can be used upright - motor up or climbing - motor down
- Aluminium body - black electrophoretic coated
- Eye body suspension is standard, hook suspension and locking chain hooks on request
- Available for 400V, 3Ph, or 220V, 1Ph power, others on request

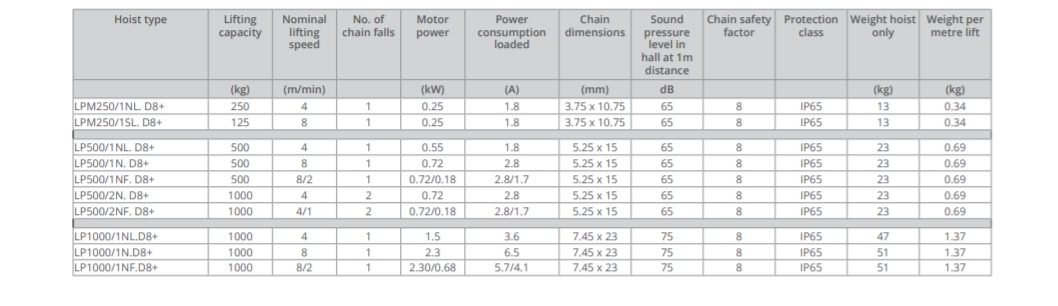

LP Models
FEATURES - NEW LP/LPM HOIST
- A new hoist from GIS
- Designed with higher lifting capacities at D8PLUS with higher duty and longer lifetime hours » IP65 Protection class - weather resistant, the moisture sensitive components are housed separately and sealed
- NEW Profile (square) steel lifting chain carries heavier loads with lower wear, black phosphate protection with high corrosion resistance and increased service life » Polygon connections on shafts and hubs - easier maintenance
- Simple, reliable, easy to use and maintain
- The hoist can be set to D8+ according to DIN569508:1 or IGVVSQP210:1 option
- Extra features allow the hoist to conform to higher safety standards with an order or when later modified

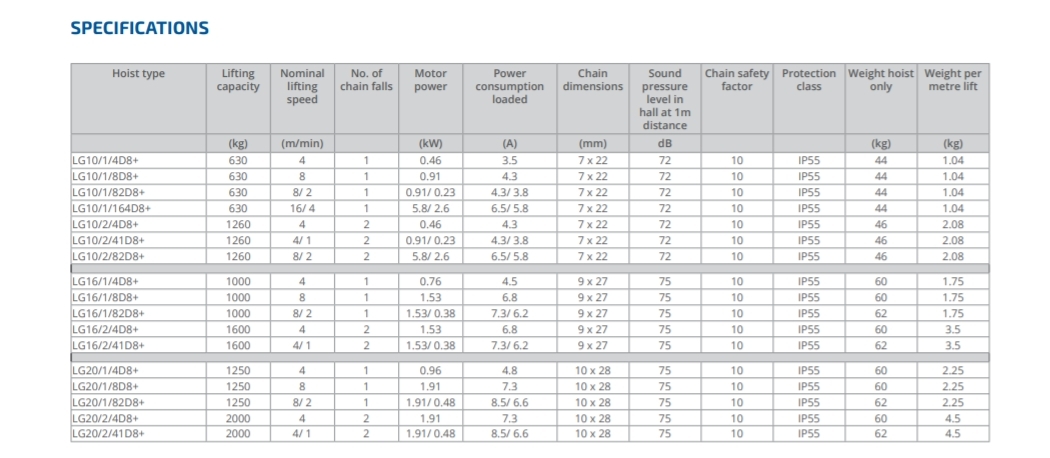

LG Models
FEATURES - GENERAL
- Modern, quiet, reliable and proven design, manufacture and assembly mean long life and competitive pricing
- Lightweight » Lifting capacities from 630 to 2000kg
- 2 independent spring loaded brakes
- Direct control or low voltage control - with upper/lower geared electrical limit switches
- Contactor control - no electronics
- Clutch overload device mounted outside the drive train; in the event of clutch problems, the load is not compromised
- Can be used upright - motor up or climbing - motor down
- Aluminium body - black electrophoretic coated with zinc plated or black chain
- Eye body suspension is standard, hook suspension and locking
- For when you need to lift, lower, position or suspend a load in entertainment rigging applications LG D8+ Entertainment Chain Hoists for General Rigging purposes to D8+ guidelines – Lifting Capacity 630kg – 2000kg chain hooks on request
- Available for 400V, 3Ph, or 220V, 1Ph power, others on request
Options include
- standard and ultimate limit switches
- load sensing suspensions or encoders for positional feedback
- Hoists for single phase power
- Locking Hooks
- Flight cases
- Other features on request, ask our sales team for details
- Custom cable tails to meet most control systems
