Key Features

  • C-rail festoon twin systems to feed power and remote pendant to overhead hoists
  • Simple to install - Cost effective alternative to bus bar
  • More robust than catenary taut wire cable festoon system
  • Free running in operation - High safety factor
  • Low maintenance
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

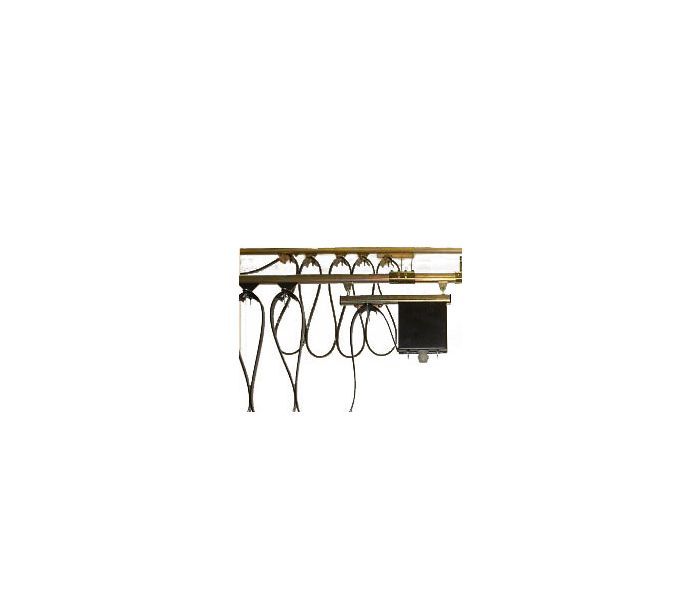

C-rail festoon cable supply and remote pendant system for flat cable suspended on same brackets. Supplied in complete kit form.
Feeds for both power and pendant, allowing safe pendant operation clear of the hoist and load.

3m Track lengths, 1.5m support centres,  I-beam support brackets

Zinc-plated track sections are compact and high-quality. Tapered sides reduce the possibility of dust buildup, assuring smooth trolley running.

Flat form cable - Fine stranded copper conductor (class 5) IEC 60228 PVC insulated. 450/750V rated. Temperature rating -20 +60°C. Core coding: Multicores: Black with white numbers/green yellow earth. Outer Sheath: Black

Kit includes:

  • Track, supplied in 3m lengths
  • Track joints (if needed)
  • 750mm adjustable support brackets c/w 2 track clips and girder clamps (one every 1.5m)
  • 2 x end anchor/clamp
  • Flat cable trolleys (one every 1.5m along each track run)
  • 1 x trolley mounted terminal box with flat cable entry gland and pendant cable exit gland
  • 1 x towing trolley
  • 2 x track end stop

Select the cables required

  • Length of flat PVC cable 4-core 2.5 mm2 power feed (Don't forget to add for tail and cutting back for connection.
  • Length of flat PVC cable pendant feed cable 8-core or 12-core 2.5 mm2  (Don't forget to add for tail and cutting back for connection.
  • PVC cable gland and lock nut PVC cable gland and lock nut. (12 core not available).

Technical details:

  • Twin tracks supported from the same support brackets
  • Support brackets clamp around top of I-beam section (305mm max flange width)
  • 10kg maximum weight per trolley
  • 750mm cable loop depth
  • 1.5m between support brackets

Pendant and pendant cable not included, but are available upon request.. - Call for information
