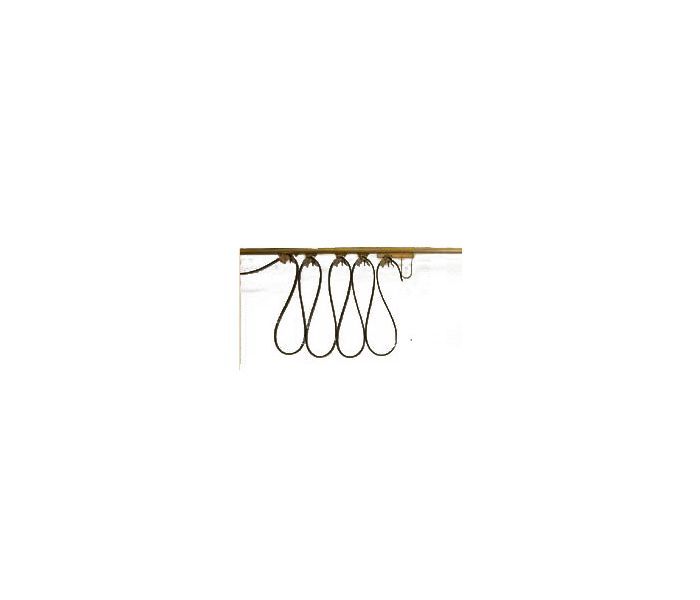

C-rail Festoon Cable Power Supply Systems

Maximum 10 characters

Maximum 10 characters

In stock
Quantity

Key Features

  • Robustness and Reliability: C-rail C rail systems are generally more durable and reliable than simpler taut wire cable festoon systems.
  • Free-Running Operation: The trolleys running on the C-rail ensure a smooth and free-running power feed, minimizing friction and wear.
  • Smooth Operation: The tapered sides of the track and the design of the trolleys help to minimize dust build-up and ensure smooth operation.
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

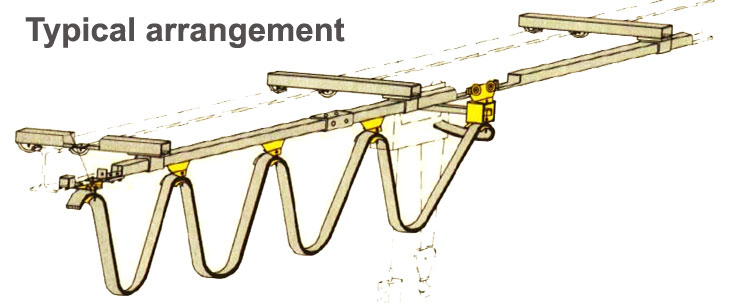

FESTOON C-Rail system has been specifically designed and developed for the support and conveyance of flat form power cables. The application of which may be seen in overhead travelling cranes, hoists, jibs and monorails, mobile material handling machines and other travelling equipment.

3m Track lengths, 1.5m support centres, I-beam support brackets

Zinc-plated track sections are compact and high-quality. Tapered sides reduce the possibility of dust buildup, assuring smooth trolley running.

Optional Flat form cable - Fine stranded copper conductor (class 5) IEC 60228 PVC insulated. 450/750V rated. Temperature rating -20 +60°C. Core coding: colour coded.
Multicores: Black with white numbers/green yellow earth. Outer Sheath: Black

Kit includes:

  • Track, supplied in 3m lengths
  • Track joints (where needed)
  • 750mm long adjustable support brackets c/w track clip and girder clamps (one every 1.5m)
  • 1 x end anchor/clamp
  • Flat cable trolleys (one every 1.5m)
  • 1 x towing cable trolley
  • 1 x track end stop

Cable Options (If Required)

Current Capacity AMPs Number of Cores Core Cross Section mm2 Overall Dimensions
(Nominal)
mm
Weight kg/m PVC Cable gland
Part No.
20 4 1.5 5 x 15 0.14 M20F
20 8 1.5 5.5 x 20 0.28 M32F
20 12 1.5 5.5 x 41 0.40 M32LF
25 4 2.5 6 x 18 0.20 M20F
25 8 2.5 6 x 40 0.40 M32LF
25 12 2.5 6 x 50 0.60 Not available
32 4 4.0 7 x 22 0.35 M32SF
45 4 6.0 7.5 x 26 0.42 M32SF

Technical details:

  • Support brackets clamp around top of I-beam section (305mm max flange width)
  • 10kg maximum weight per trolley
  • 750mm cable loop depth
  • 1.5m between support brackets
  • Select the Length of flat PVC cable (Don't forget to add for the tail and cutting back for the connection).
  • Select PVC cable gland and lock nut.
